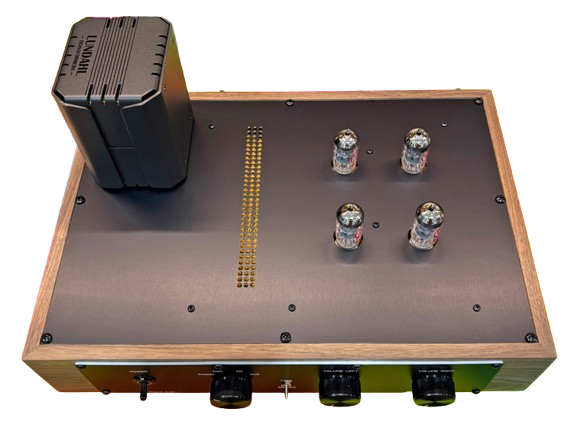

Introducing our latest addition to our preamp stable, model Statera, our differential balanced tube hybrid line preamp, all housed in a custom wood chassis.
Statera is a diffenretial balanced line preamp design, maintaining the +ve and -ve balanced signals from the XLR inputs, through the preamp and back out to the XLR outputs, using the excellent 6922/E88CC audio tube with a MOSFET output buffer.
In effect, Statera has two differential balanced mono circuits, one for the right and one for the left channel.
A lot of time was spent on this design by our partner Ray Waters, Ray has really excelled with this circuit.This is a very elegant yet simple design, the end result being an amazing sounding line preamp, our best yet!
The power supplies are regulated solid state DC, powered by a Lundahl power transformer custom made for Erhard Audio.
Coupling capacitors are Mundorf MCap EVO's, signal path resistors are Vishay and TE Connectivity high precision film types.

This is a no compromise design and build, only the best parts are used as well as Mundorf MCap EVO film coupling caps'.

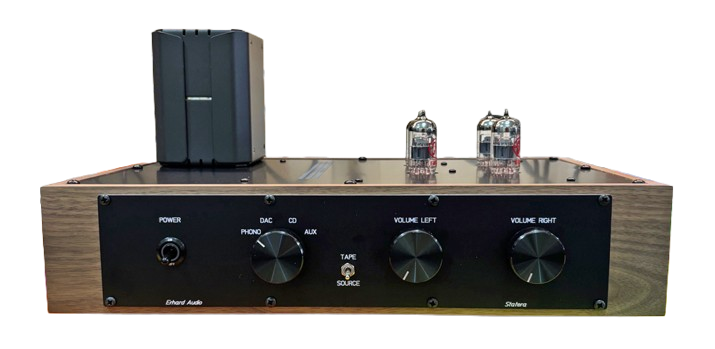

Two ALPS Blue Velvet volume controls are provided, one for the right and one for the left channel. These can also be used to adjust the 'balance' if required.
Input selection is for 4 line level balanced audio sources. As an option, a balanced tape loop, consisting of tape in and tape out, is also offered.

Included with the Base Statera:

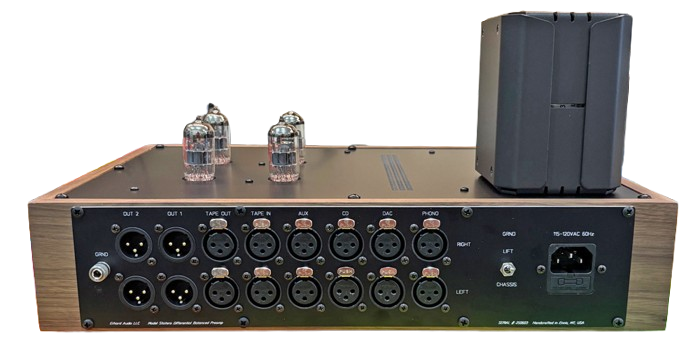

4 XLR inputs
2 identical XLR outputs
ALPS Blue Velvet volume controls, 1x right & 1x left channel
Factory new Gold Lion E88CC/6922 tubes
Choice of woods and plate colors for the chassis

Options for Statera:
2 XLR tape loop, made up of Tape In and Tape Out, with the relevant selector switch on the front panel.
Loudness toggle switch

Specifications:
Frequency response is down 0.05dB @ 10Hz and 40KHz
Input impedance 300K balanced, 150K single ended
Output impedance 100 OHMS

Power consumption: 34W
Chassis size: 15"W x 11.5"D x 8 1/8"H
Weight: 12lb








Base price: $2,450.00
Statera Differential Balanced Preamp
Options:
Tape/Source toggle switch: + $120.00
