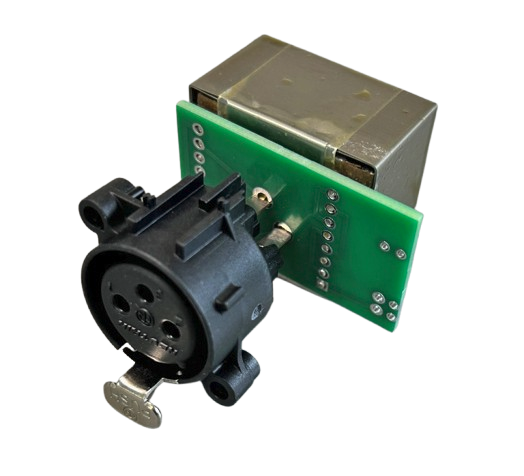

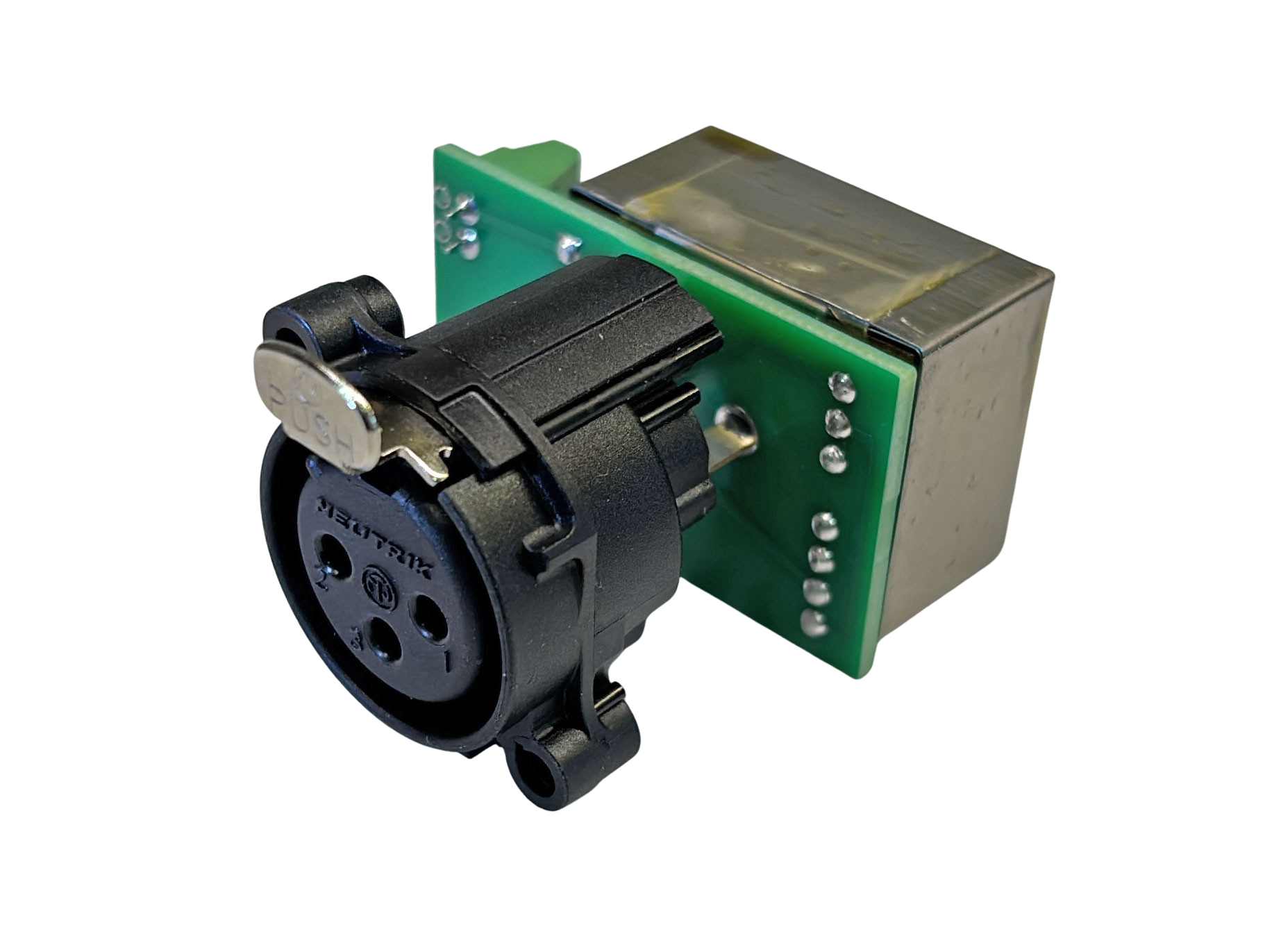

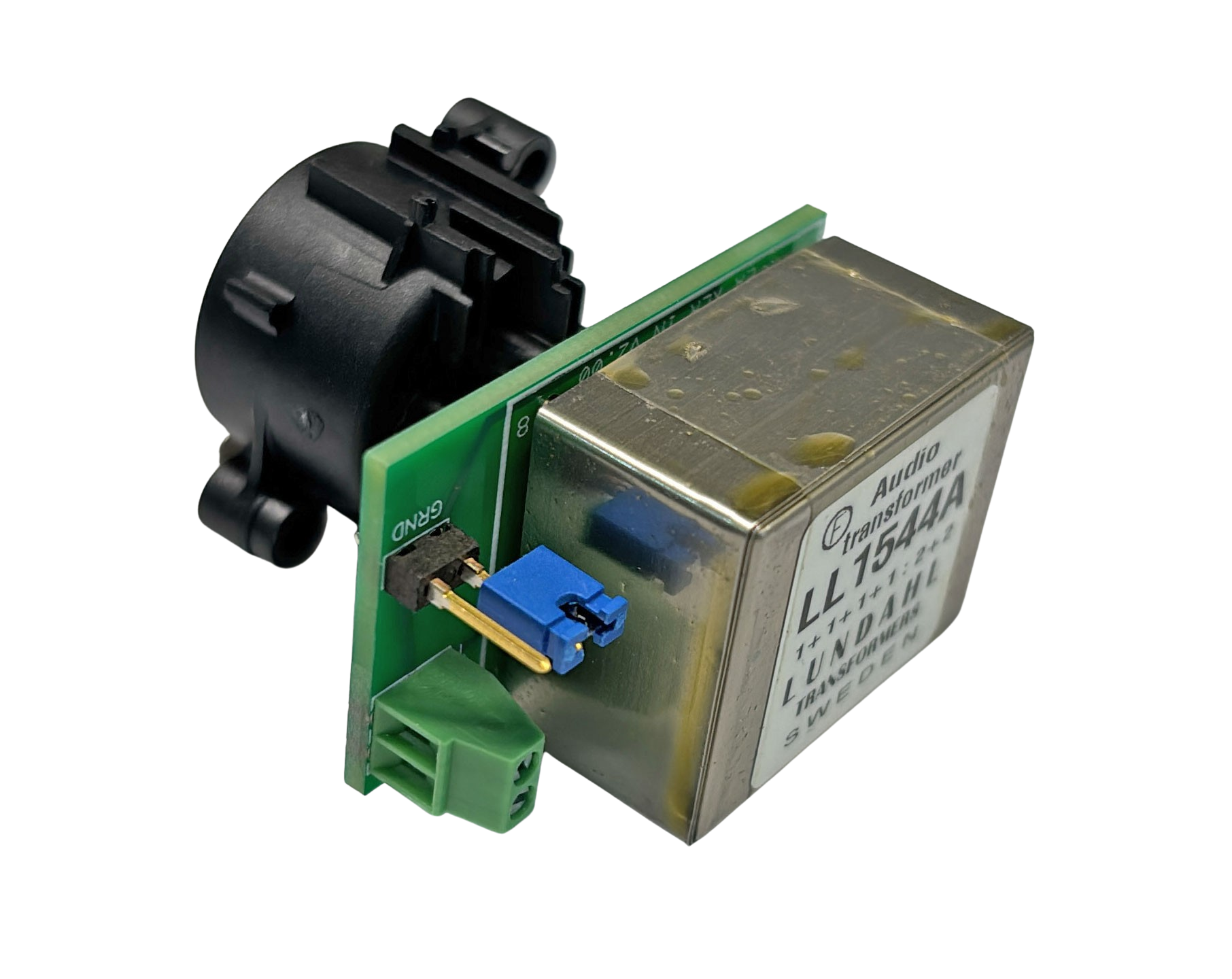

LL1544A based XLR balanced input to single ended output convertor.
This allows you to modify your amp or preamp, or build a stand alone box, to accept balanced XLR input and then properly convert the balanced signal to a single ended output signal using the excellent Lundahl LL1544A audio transformer.
This is a fully assembled unit, ready for installation and wiring up.
It also comes with a ground header allowing you to ground the XLR ground to signal ground if required.
It is configured for 1:1 signal conversion which is NOT user configurable.
Mounting hardware is not included, you can use 2.5mm, 3mm or 4-40 screws and nuts.
Price: $150.00
NOTE: Until further notice, Import tariff on Lundahl goods will be added to the invoice

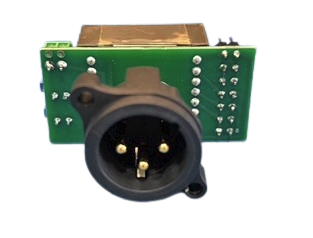

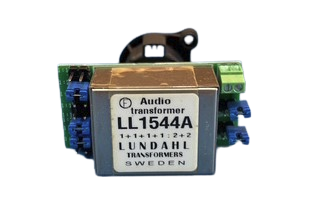

LL1544A based unbalanced SE input to XLR balanced output converter.
This allows you to modify your amp or preamp which has a single ended unbalanced output and then properly convert the unbalanced signal to a balanced output signal using the excellent Lundahl LL1544A audio transformer, or build a stand alone box.
This is a fully assembled unit, ready for installation and wiring up.
It also comes with two ground headers allowing for ground configuratrion.
It can be configured for 1:1 or 1:2 signal conversion by using relevant headers and shunts on the pcb, details of which are outlined with the manual you get.
Mounting hardware is not included, you can use 2.5mm, 3mm or 4-40 screws and nuts.
Price: $150.00
NOTE: Until further notice, Import tariff on Lundahl goods will be added to the invoice
Balanced to unbalanced signal conversion (input)
Unbalanced to balanced signal conversion (output)
Dimensions of the assembly.
NOTE: the depth is measured from the INSIDE face of the plate the assembly will be mounted to.
The overall size of the whole assembly is 45mm/1.77" deep, 40mm/1.58" wide and 34mm/1.34" high.
For the mounting hole dimensions of the NUTRIK female socket, please click here for the PDF data sheet
Dimensions of the assembly.
NOTE: the depth is measured from the INSIDE face of the plate the assembly will be mounted to.
The overall size of the whole assembly is 45mm/1.77" deep, 47.5mm/1.88" wide and 34mm/1.34" high.
For the mounting hole dimensions of the NUTRIK male socket, please click here for the PDF data sheet
Price is per assembly
Price is per assembly
Available soon
