Aretha-LT-n

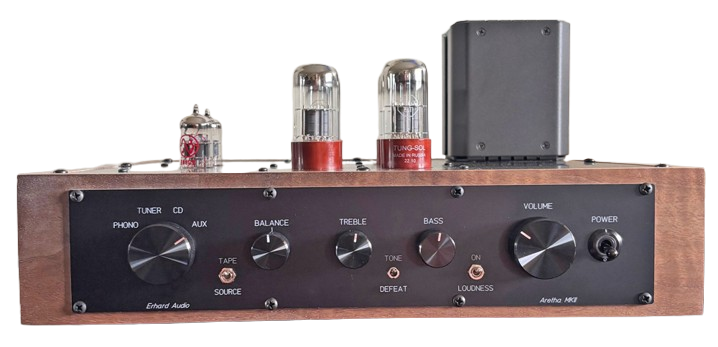

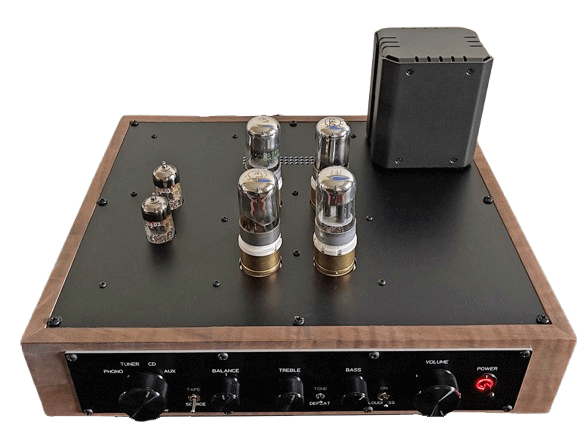

Designed with the audio enthusiast in mind, Aretha LT is a single ended 6SL7 based preamplifier. The circuit is a cathode follower with Baxandall tone controls, all housed in a custom wood chassis.

The power supplies are regulated solid state DC, powered by a Lundahl transformer custom made for Erhard Audio.

Coupling capacitors are Mundorf MCap EVO's, signal path resistors are Vishay and TE Connectivity high precision film types.

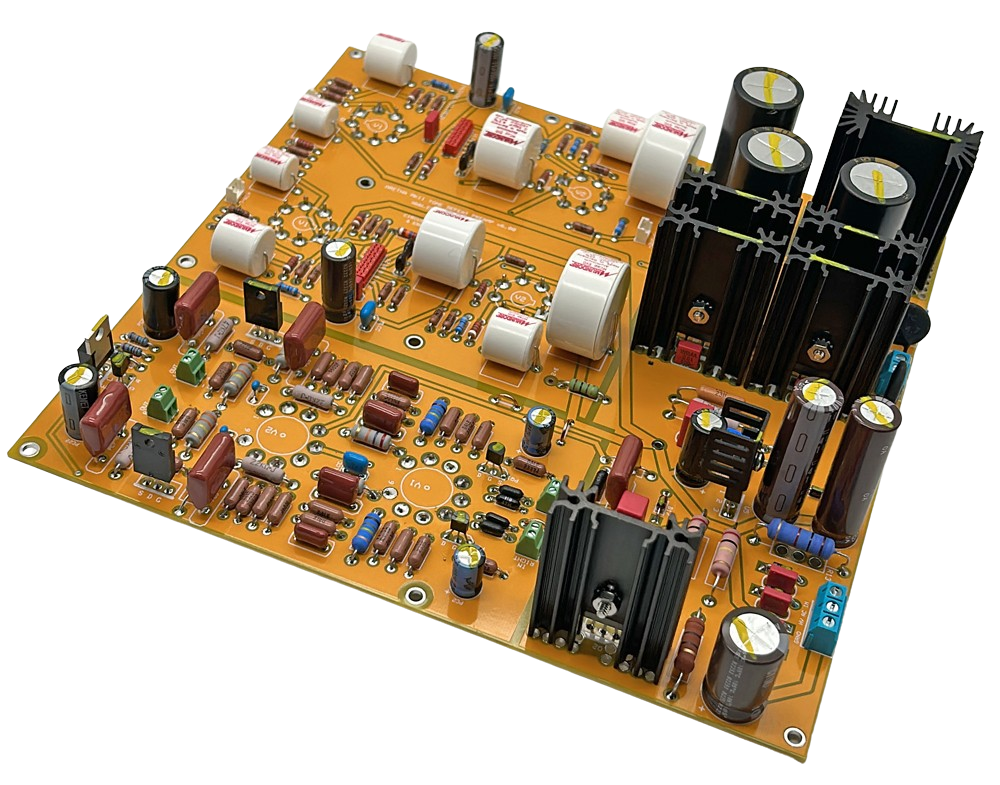

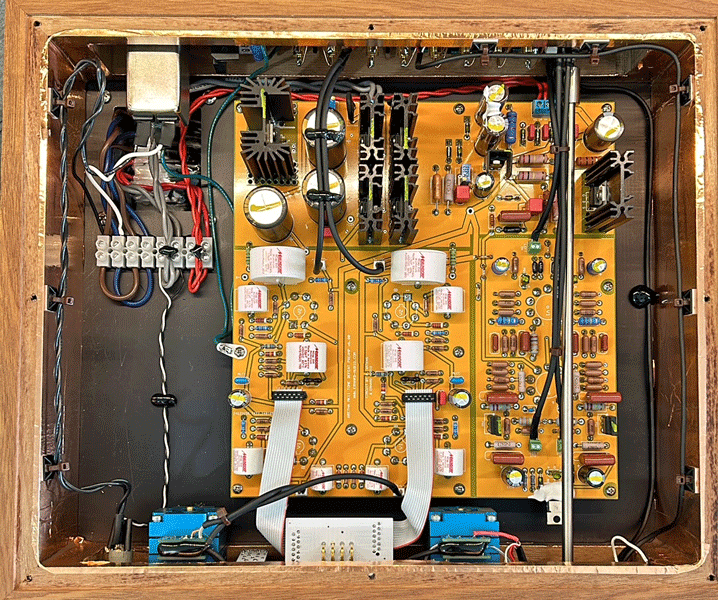

The printed circuit boards are designed in house, manufactured to FR4-TG standards, and are double-layer with ground planes on both sides to ensure proper screening of the circuits.

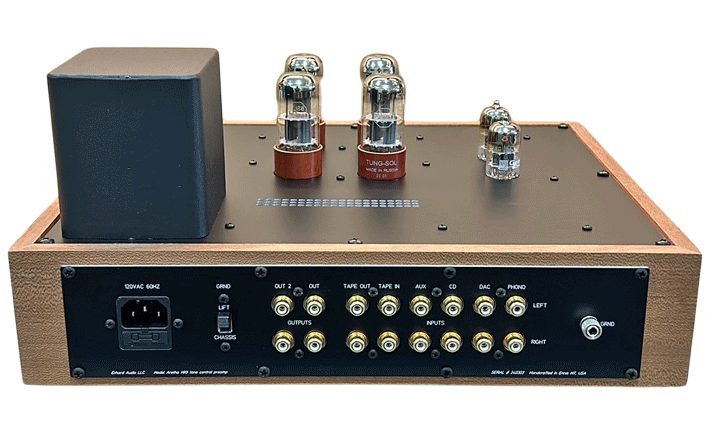

RCA sockets are gold plated and mounted directly onto their dedicated printed circuit board, which also carries the selector switch which is connected via a stainless steel shaft, supported by a miniature ball bearing running through the front panel to the selector knob.

The volume control is a precision machined 59 step attenuator, -60dB to 0dB.

If you want any special customizations, please contact us with details and we will try our best to accommodate your request.

Aretha LT preamp comes with your choice of chassis wood and plate colors plus any of the options listed below, please look here for wood choices.

All tubes used with Aretha LT have a minimum of 10hrs burn in time on our own Aretha LT.

PS Vane Horizon 6SL7's are offered as a sonic upgrade option. These tubes are excellent sounding right out of the box and as pointed out above, they have a mimimum of 10hrs run it time on our own Aretha LT.

Aretha LT is built to order and will take around 6-8 weeks to complete and ship and can be wired for 120VAC 60Hz or 220-240VAC 50Hz

Included with the Base Aretha LT:

4 input selection

2 identical outputs

Treble & Bass tone controls

59 Step custom made volume control

Balance control

Factory new Tung Sol 6SL7 triodes

Choice of woods and plate colors for the chassis

Options for the Aretha LT:

Gold Lion E88CC/6922 based MM phono preamp

Tone Controls Defeat Switch

Tape/Source toggle switch

Loudness toggle switch

Factory new PS Vane Horizon 6SL7 tubes

Blue Velvet ALPS Remote volume control NOTE: The remote volume option is not available with the standard stepped attenuator!

Specifications:

Main preamplifier gain with tone controls centered - 12dB (x4)

Frequency response is 20Hz to 30KHz, +/-0.1dB

Output impedance, 625 OHMS; Input impedance 1M

Tone controls, boost and cut of 12dB

Power consumption: 34W

Chassis size: 14.5"W x 13"D x 7"H

Weight: 12lb
