Premium MC Phono Step-Up (SUT) Kits, RCA & XLR
The Premium Kit is supplied with the new LL1931, LL1933, LL194 , LL1943 , LL1961 , LL1971 and LL1963 MC step-up transformers. (click on the model numbers to bring up the data sheet) These were developed as a higher performance alternative to the LL9226 and LL1678. They use the same amorphous cobalt core material, but are substantially larger. The coils are wound with Cardas “6 nines” high purity copper wire.
The design was optimized for low to medium output MC cartridges and the sonic performance with these transformers is exceptional.
The LL1931 and LL1933 provides 18dB and 24dB step-up capability that is switch selectable. A higher step-up ratio version of the LL1931/1933, the LL1941/1943, is also available for very low output cartridges or for use with low gain phono preamps, yielding 24dB and 30dB step-up.
The LL1971 provides 22dB and 27dB step-up capability that is switch selectable.
The LL1961 provides 4dB and 10dB step up, the LL1963 provides 10dB and 16dB step up.
For the Ultimate in MC Step-up the LL1931, LL1933, LL1941 and LL1943 are all available wound with high purity silver wire as an option.
There is also grounding flexibility designed into the kit to allow the best performance with different types of tonearm cabling.
Solder pads for resistors (1/4 or 1/2W) on the secondary side of each transformer are provided on the PC board so that the user can optimize resistive loading for the best sound.
The kit includes connectors, transformers, PC board, generic high purity copper wire, hardware, and enclosure.
NOTE: we need the specs of your MC cartridge in order to get the correct R-LOAD resistor value!
Important note about the R-LOAD resistor.
We base the R-LOAD resistor value, shipped with your kit, on the data on your MC cartridge you provided us with.
This value is not completely set in concrete, and can in fact be varied with a resistor value above and below with what is shipped with your kit.
The relevant different values which can be tried for a given SUT model are detailed in the Applications Guide. Experimenting with different R-LOAD resistor values will change the resulting tone of your cartridge in use and allows you to really fine tune your MC cartridge.
To aid in trying out different R-LOAD resistor value, our kits come with gold plated pcb pins, onto which the R-LOAD resistor is mounted/soldered to. This makes changing out the R-LOAD resistor easier and safer, as constant de soldering and re soldering of parts directly on a pcb pad can and will damage that pad in time.
Please see the photo's below showing how the R-LOAD resistor is mounted to these pcb pins.
The enclosure is CNC machined and letter engraved diecast aluminum case that provides exceptional RF shielding. The RCA enclosure is 4.57″ x 3.03″ x 1.48″, 16cm x 7.7cm x 3.8cm.
The XLR enclosure is 4.71" x 3.7" x 1.53", 11.95cm x 9.4cm x 4.4cm.
Available colors for the case are blue or red.
For more information on MC SUT's, and how to apply proper loading to cartridges, we suggest you visit this page, Applications Guide
|
$820.00
|
|
|
$860.00
|
|
|
$2,650.00
|
|
|
$2,690.00
|
|
|
$699.00
|
|
|
$739.00
|
|
|
$2,500.00
|
|
|
$2,540.00
|
|
|
$820.00
|
|
|
$860.00
|
|
|
$2,650.00
|
|
|
$2,690.00
|
|
|
$699.00
|
|
|
$739.00
|
|
|
$2,500.00
|
|
|
$2,540.00
|
|
|
LL1971 Cardas high purity copper wire, Amorphous core, Premium Moving
oil Step-Up Kit, RCA: |
$830.00
|
|
LL1971 Cardas high purity copper wire, Amorphous core, Premium Moving
coil Step-Up Kit, XLR: |
$870.00
|
|
LL1961 Cardas high purity copper wire, Amorphous core,
Premium Moving Coil Step-Up Kit, RCA:
|
$850.00
|
|
LL1961 Cardas high purity copper wire, Amorphous core,
Premium Moving Coil Step-Up Kit, XLR:
|
$890.00
|
|
LL1963 Cardas high purity copper wire, MU metal core
Premium Moving Coil Step-Up Kit, RCA:
|
$799.00
|
|
LL1963 Cardas high purity copper wire, MU metal core
Premium Moving Coil Step-Up Kit, XLR:
|
$839.00
|
|
Assembled and tested kit, add to the above prices:
|
+$135.00
|
|
|
|
|
Shipping to the lower 48:
|
$22.00
|
NOTE:
Lead time is approximately 1 to 2 weeks if we have the required transformer model on hand, otherwise 4+ weeks.
Assembly and testing will add 1 additional week to shipping. These kits are prepared/made to order, hence the slightly longer lead times.
Standard MC Phono Step-Up (SUT) Kits, RCA & XLR
The Standard Kit is supplied with the proven LL9226, LL1678 or LL1681 MC step-up transformers. (click on the model numbers to bring up the data sheet) These are proven performers for the budget minded.
The LL1678 uses an amorphous core, the LL9226 uses a cobalt based uncut amorphous strip core and the LL1681 uses a MU metal core..
The standard kit now employs the new Lundahl LL9226 for improved sound. This transformer is a rethinking of the already very good LL9206, incorporating what was learned in the development of the LL1931. It offers across-the-board better perfomance than its predecessor.
The LL9226 can give 14, 20 or 26dB of gain, the LL1678 can give 18, 24 or 30dB of gain and the LL1681 can give 13 or 26dB of gain.
Solder pads for resistors (1/4 or 1/2W) on the secondary side of each transformer are provided on the PC board so that the user can optimize resistive loading for the best sound.
The kit includes connectors, transformers, PC board, generic high purity copper wire, hardware, and enclosure.
NOTE: we need the specs of your MC cartridge in order to get the correct R-LOAD resistor value!
Important note about the R-LOAD resistor.
We base the R-LOAD resistor value, shipped with your kit, on the data on your MC cartridge you provided us with.
This value is not completely set in concrete, and can in fact be varied with a resistor value above and below with what is shipped with your kit.
The relevant different values which can be tried for a given SUT model are detailed in the Applications Guide. Experimenting with different R-LOAD resistor values will change the resulting tone of your cartridge in use and allows you to really fine tune your MC cartridge.
To aid in trying out different R-LOAD resistor value, our kits come with gold plated pcb pins, onto which the R-LOAD resistor is mounted/soldered to. This makes changing out the R-LOAD resistor easier and safer, as constant de soldering and re soldering of parts directly on a pcb pad can and will damage that pad in time.
Please see the photo's below showing how the R-LOAD resistoe is mounted to these pcb pins.
The enclosure is CNC machined and letter engraved diecast aluminum case that provides exceptional RF shielding. The RCA enclosure is 4.57″ x 3.03″ x 1.48″, 16cm x 7.7cm x 3.8cm.
The XLR enclosure is 4.71" x 3.7" x 1.53", 11.95cm x 9.4cm x 4.4cm.
Available colors for the case are blue or red.
For more information on MC SUT's, and how to apply proper loading to cartridges, we suggest you visit this page, Applications Guide
|
$500.00
|
|
|
$540.00
|
|
|
LL1678 Amorphous core, Standard Moving Coil Step-Up Kit, RCA:
|
$510.00
|
|
LL1678 Amorphous core, Standard Moving Coil Step-Up Kit, XLR:
|
$550.00
|
|
LL1681 MU metal core, Standard Moving Coil Step-Up Kit, RCA:
(uses Premium SUT pcb)
|
$565.00
|
|
LL1681 MU metal core, Standard Moving Coil Step-Up Kit, XLR:
(uses Premium SUT pcb)
|
$605.00
|
|
Assembled and tested kit, add to the above prices:
|
+$135.00
|
|
|
|
|
Shipping to the lower 48:
|
$22.00
|
Premium SUT Kit prices, RCA & XLR
Standard SUT Kit prices, RCA & XLR
Premium SUT pcb
Standard SUT pcb
The gold plated pcb pins on the Standard sut kit pcb, showing how the R-LOAD resistor is mounted/soldered
The gold plated pcb pins on the Premium sut kit pcb, showing how the R-LOAD resistor is mounted/soldered
The above Premium SUT kits are really not designed to be used with more than one cartridge. If you have more than one cartridge, please check out our Dual Cartridge SUT Box, click here.
With the Standard SUT kits, the transformer step up ratio is hard wired and therefor is optmized for one cartridge model only. The step up ratio would be very difficult to change as it would require the dismantling and removal/de soldering of the transformer and jumper links to change the step up ratio.
With the Premium SUT kits, they come with a mini toggle switch which allows the user to change the step up ratio of each model premium transformer used in the SUT kit, but this would also generally require the change of the loading resistor in order to compensate for the different wiring of the transformers secondary windings.
This requires de soldering of the loading resistor and then re soldering of the new value loading resistor. This requires careful soldering using a small tip on the soldering iron and one should have reasonably well soldering skills, as it would be too easy to actually de solder the gold plated loading resistor pins as well!
SUT boxes suitable for two different cartridges, please click here
A tariff charge of 10% will apply to the transformers only
RCA SUT boxes available in red or blue
XLR SUT boxes available in red or blue
Typical RCA enclosure

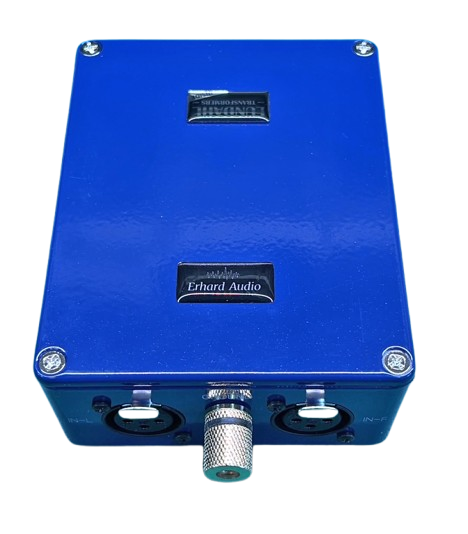

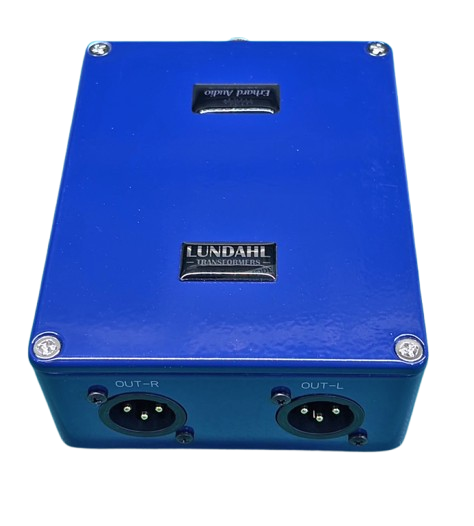

Typical XLR enclosure
