These pcb's will simply solder onto the transformer so that all the transformers' pins are 'extended' to make soldering and wriring easier.

Where applicable, jumper links need to be installed to configure the primary winding for 120VAC or 220/240VAC.

Always refer to the transformer data sheet for correct configuration.



If you order these pcb's with your Power Transformer order, there will be no additional shipping charge. To order, please send us an e-mail at erhardaudio@gmail.com.

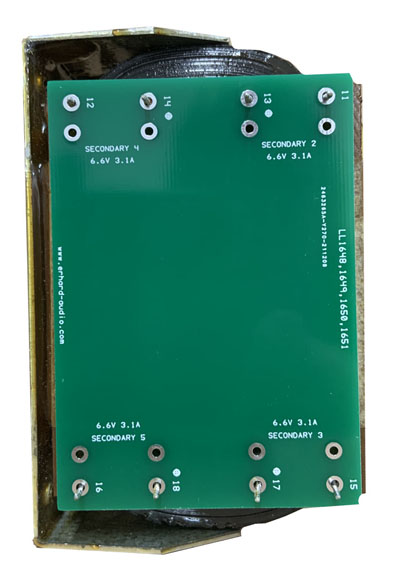

This pair of pcb's is suitable for the LL1648,1649,1650 & 1651



Order code PCB-LL1650-2, price for a pair $13.00 plus $10.50 shipping to the lower 48, unless ordered with one of the suitable transformer, then it will be shipped with the transformer order.

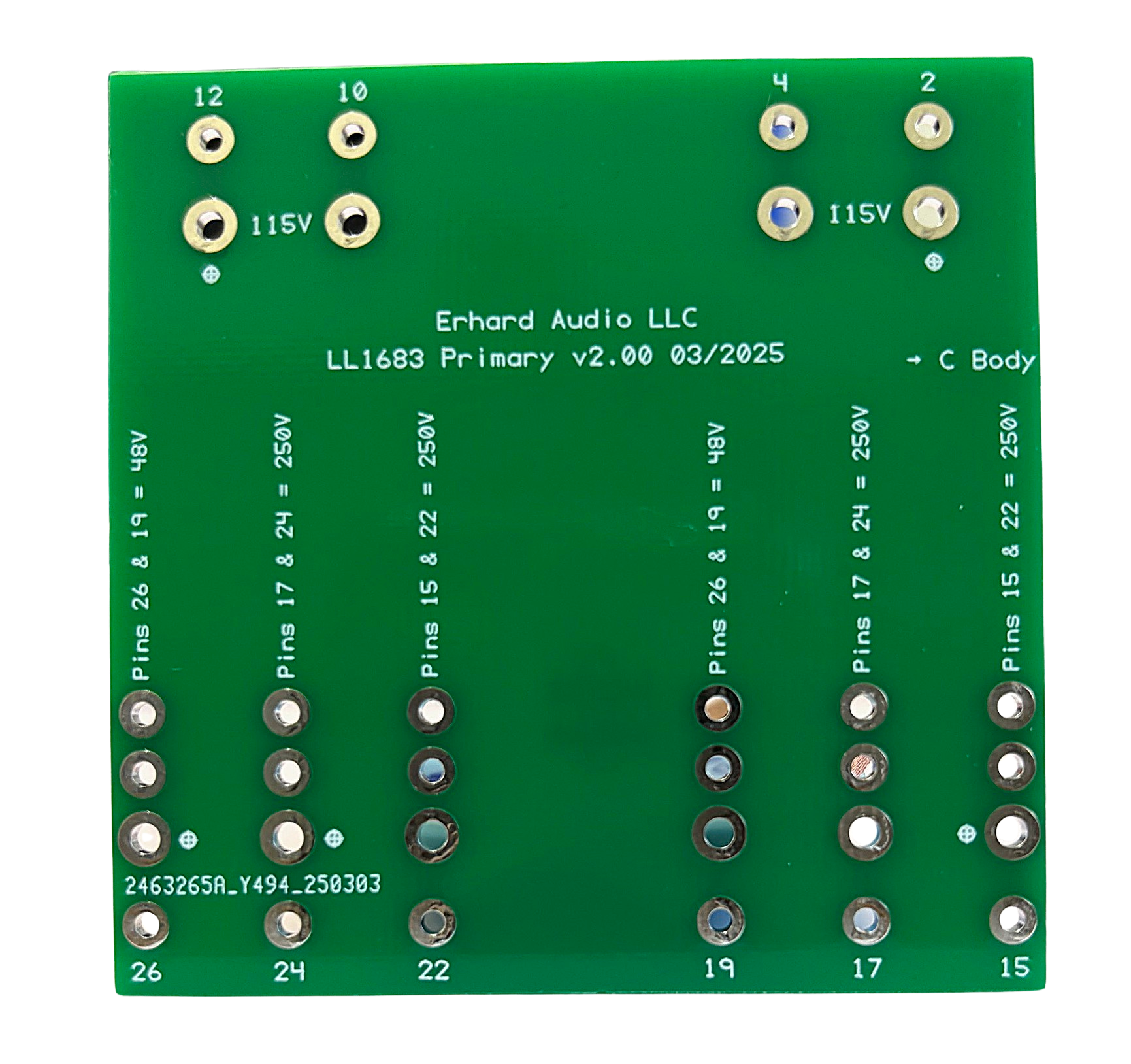

This pair of pcb's is suitable for the LL1683



Order code PCB-LL1683-2, price for a pair $13.00 plus $10.50 shipping to the lower 48, unless ordered with one of the suitable transformer, then it will be shipped with the transformer order.
