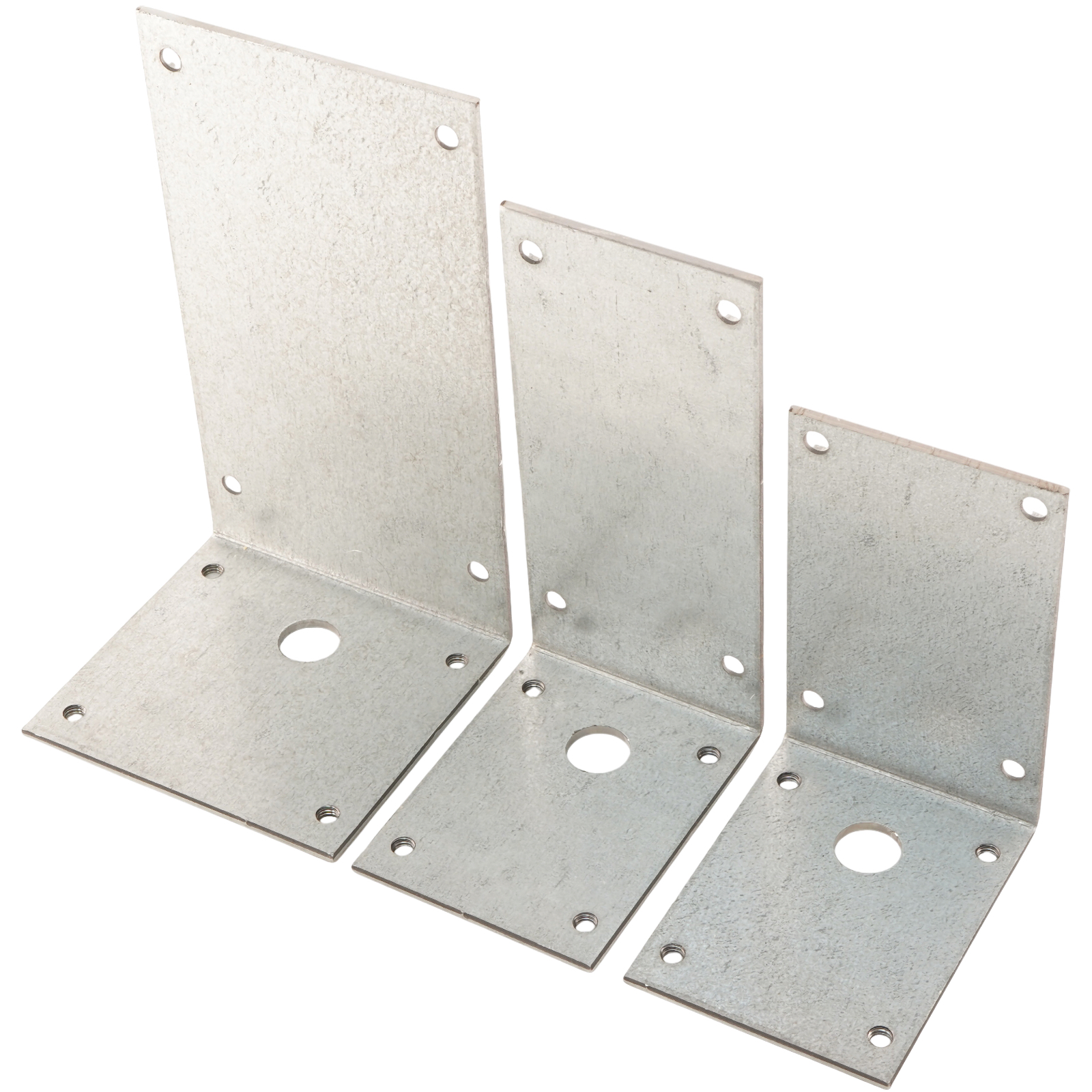

Lundahl offers seven different sizes of transformers, these new steel L-Brackets are for the most popular sizes.

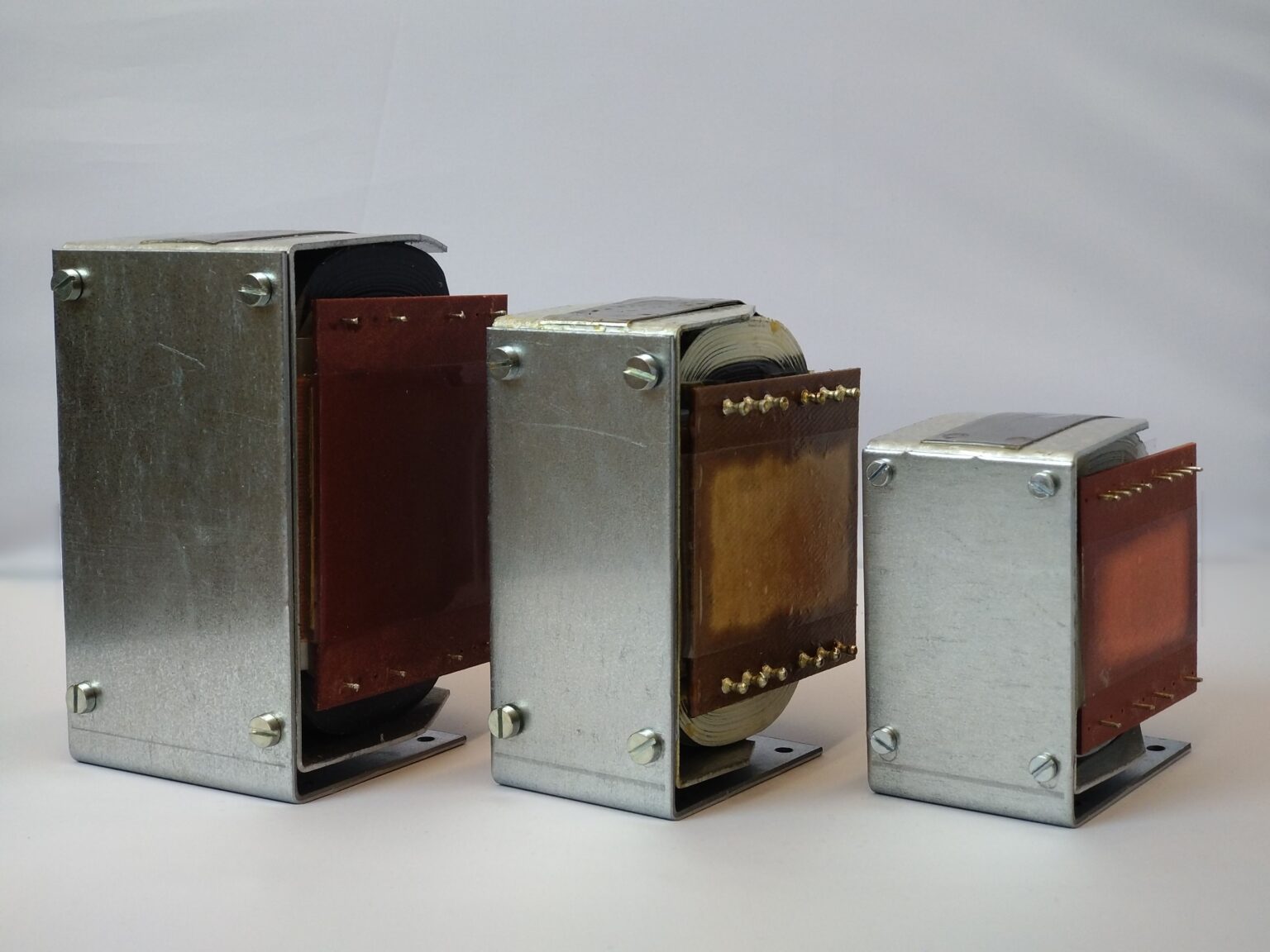

These L-Brackets are ideal if you wish to mount a Lundahl Transformer without using the Lundahl housing, or you can now also use 3rd party transformer housings to mount the transformer inside those housings.



How to choose which L-Bracket to use? Refer to the datasheets below in PDF format.



L-Bracket-1660 for 0.75kg transformers

L-Bracket-1638 for 1.35kg transformers

L-Bracket-1620 for 2.5kg transformers



Dimensions, including solder pins :



L-Bracket-1660: 50mm/1.97" (w) x 65mm/2.56" (d) x 76mm/2.99" (h)

L-Bracket-1638: 55mm/2.16" (w) x 80mm/3.15" (d) x 100mm/3.94" (h)

L-Bracket-1620: 85mm/3.35" (w) x 80mm/3.15" (d) x 115mm/4.53" (h)







The L-Brackets are made of steel and are magnetic, which will improve screening.

Each bracket is supplied with 4x M4 screws to mount the transformer to its bracket.

You will need to supply your own M4 screws to mount the bracket & transformer assembly to your chassis.



Price for each bracket is US$13.00 including hardware, plus shippng, no matter which size.
