Breakout

Breakout PCB's for Lundahl Audio Transformers

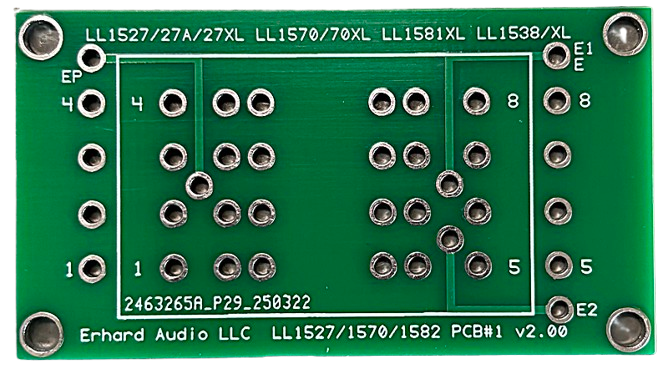

Breakout PCB #1.

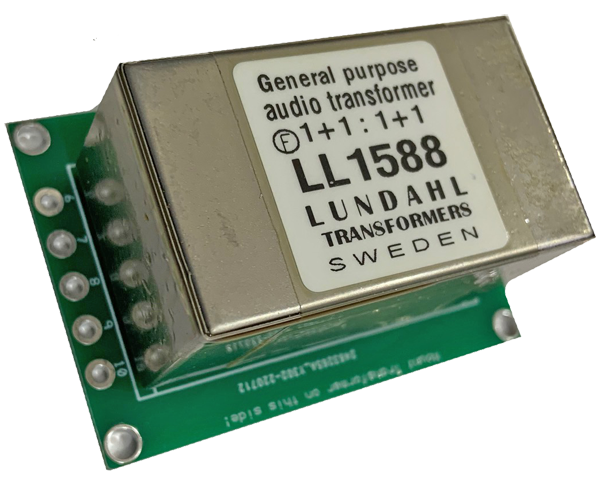

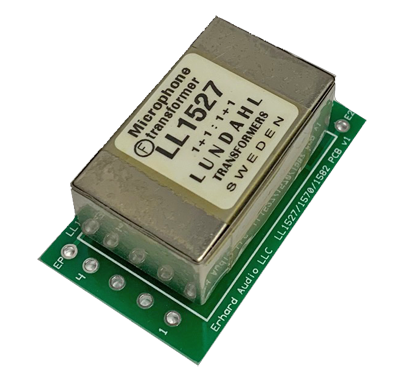

We have come up with a small 'Breakout PCB' to suit a number of Lundahl general purpose as well as microphone audio transformers.

The transformer will simply be soldered onto this pcb, and all the transformers' pins are 'extended' to the pcb's edge to make soldering and wiring easier.

As well, additional solder pads are provided for each pin of the transformer, for easy configuration of the transformer in use.

The price of each pcb is US$7.50 plus $6.00 shipping to the lower 48. If you order this pcb with your Audio Transformer order, there will be no additional shipping charge. Please contact us at erhardaudio@gmail.com to place an order.

Size is 50.11mm/2.01" x 29.5mm/1.16"

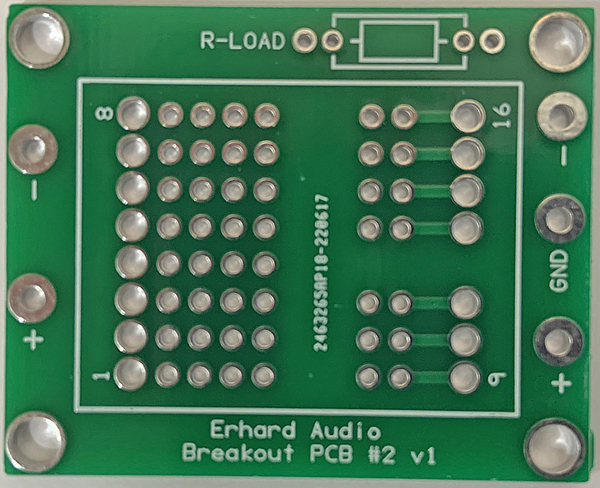

Breakout PCB #2.

We have come up with a small 'Breakout PCB' to suit a number of Lundahl general purpose as well as microphone audio transformers.

The transformer will simply be soldered onto this pcb, and all the transformers' pins are 'extended' to the pcb's edge to make soldering and wiring easier.

As well, additional solder pads are provided for each pin of the transformer, for easy configuration of the transformer in use.

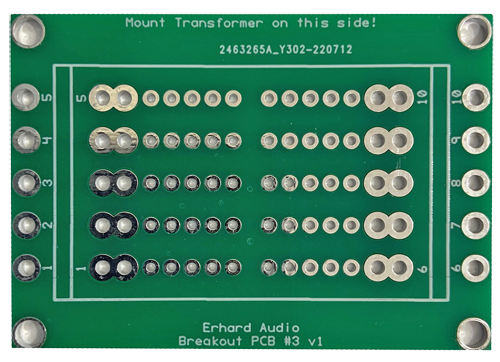

Breakout PCB #3.

We have come up with a small 'Breakout PCB' to suit a number of Lundahl general purpose as well as microphone audio transformers.

The transformer will simply be soldered onto this pcb, and all the transformers' pins are 'extended' to the pcb's edge to make soldering and wiring easier.

As well, additional solder pads are provided for each pin of the transformer, for easy configuration of the transformer in use.

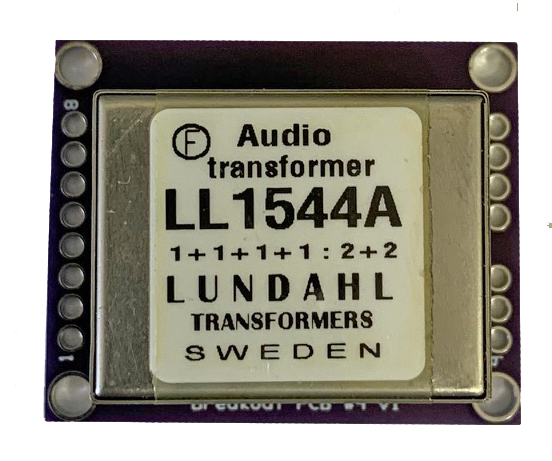

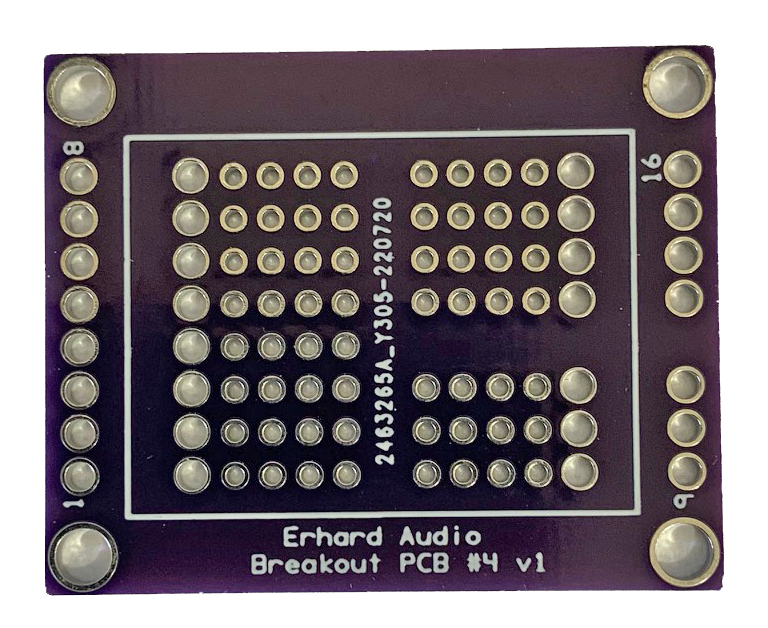

Breakout PCB #4.

We have come up with a small 'Breakout PCB' to suit a number of Lundahl general purpose as well as microphone audio transformers.

The transformer will simply be soldered onto this pcb, and all the transformers' pins are 'extended' to the pcb's edge to make soldering and wiring easier.

As well, additional solder pads are provided for each pin of the transformer, for easy configuration of the transformer in use.

This Breakout PCB is suitable for the following models of Audio Transformers:

LL1527, LL1527A, LL1527XL, LL1528

LL1530, LL1538, LL1538XL, LL1540

LL1545E, LL1570, LL1570XL, LL1571

LL1576, LL1577, LL1578, LL1578XL

LL1935, LL1952

This Breakout PCB is suitable for the following models of Audio Transformers:

LL1545A, LL1550, LL1555, LL9206, LL9226

This Breakout PCB is suitable for the following models of Audio Transformers:

LL1588, LL1592, LL1674, LL1676,LL1681

LL1684, LL1690, LL1922, LL1930, LL1933

LL1948, LL1949, LL196, LL1963, LL1971

LL5402

This Breakout PCB is suitable for the following models of Audio Transformers:

L1544A, LL1545A, LL1555, LL1636, LL1678

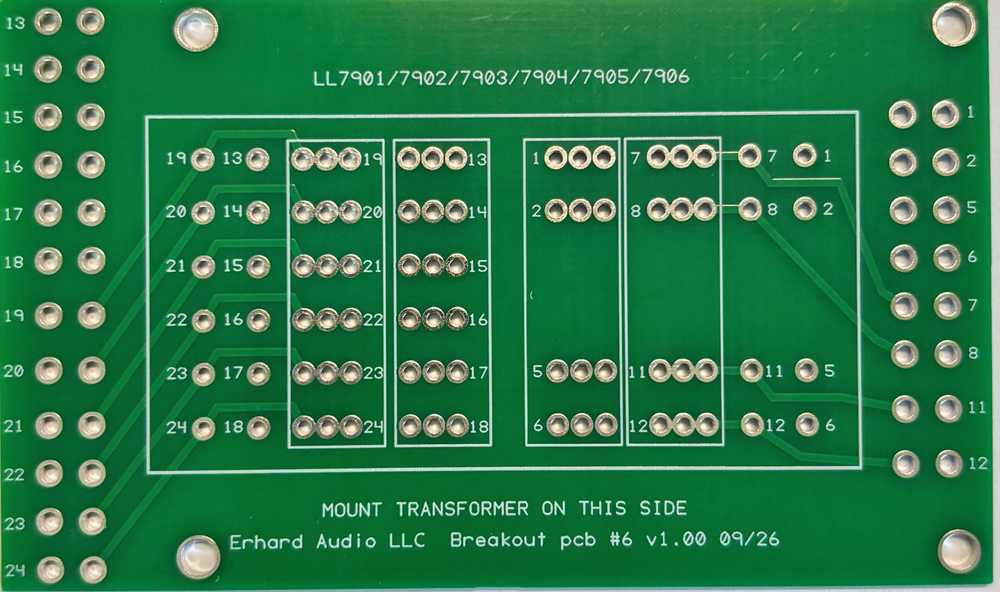

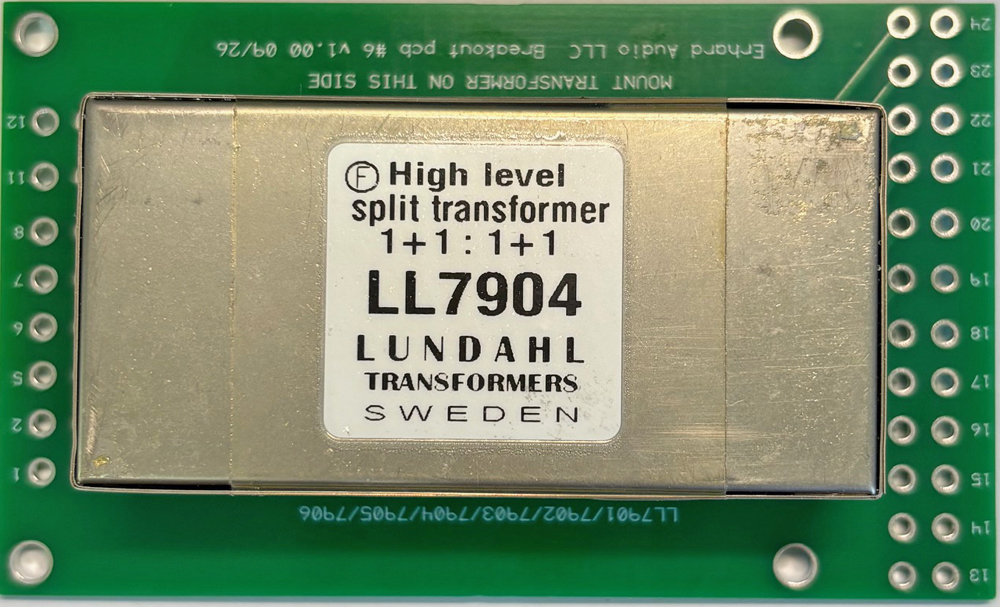

Breakout PCB #6.

We have come up with a small 'Breakout PCB' to suit a number of Lundahl general purpose as well as microphone audio transformers.

The transformer will simply be soldered onto this pcb, and all the transformers' pins are 'extended' to the pcb's edge to make soldering and wiring easier.

As well, additional solder pads are provided for each pin of the transformer, for easy configuration of the transformer in use.

The price of each pcb is US$8.50 plus $6.00 shipping to the lower 48. If you order this pcb with your Audio Transformer order, there will be no additional shipping charge. Please contact us at erhardaudio@gmail.com to place an order. Size is 90mm/3.54" x 55mm/2.17"

This Breakout PCB is suitable for the following models of Audio Transformers:

LL7901, LL7902, LL7903, LL7904, LL7905

LL7906, LL7907,

Abvailable soon!
