Elvis

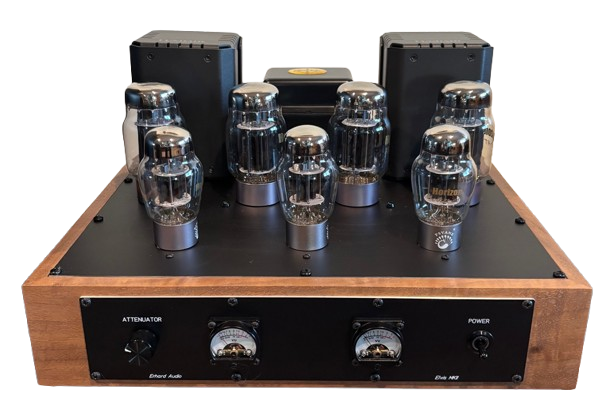

Elvis MKII is a push-pull power amplifier, inspired by the classic Mullard amplifier circuit of the 50's, rated at 60W/CH using a quad set of Gold Lion KT88 beam tetrodes.

The amp uses an Auto Bias circuit, identical to the one used in our model Buddy 120W mono blocks. This takes the guess work out of keeping the bias for the KT88's at the correct level. We set the bias, then you'll never have to worry about adjusting the bias again!

Please contact us if you wish to know more about the Auto Bias circuit and how it works.

The preamp/driver section uses three factory new Tung Sol 6SN7 triodes.

The OPT's are the excellent Lundahl LL3723PP, the power transformer is our own design, custom made for us by Heyboer Transformers.

Inputs can be supplied as true balanced XLR, using the excellent Lundahl LL1544A audio transformer.

Elvis MKII is build to order and will take around 6-8 weeks to build and ship.

Every Elvis MKII comes with your choice of chassis wood and plate colors

Specifications:

Power output with 4x Gold Lion KT88 power tubes: 60Watts/channel from 15Hz to 35KHz at less than 0.7% THD in ultra linear mode.

IMD: < 0.38% (18Khz and 21Khz) at rated power

Frequency response: 10Hz to 40Khz +/- 0.1dB at 50Watts

Power bandwidth: 16Hz to 39Khz +/- 0.3dB at 50Watts

Sensitivity: 2.5 volt in for 60Watts/channel out

Feedback: 10dB

Damping Factor: 14

Input impedance: 270,000 ohms

Hum & noise: > 90dB below 60Watts output

Power requirement: 120VAC 60Hz or can be wired for 220/240VAC 50Hz

170W

Weight: 42lb

Dimensions: 14.5"W x 13 1/16"D x 8.5"H
